Adjustable Electric Iron Kst Thermostat

Basic Info.

Model NO.	JY-KST004
Material	S/S Stainless Steel,Silver,Rivet,Ceramic,Brass Rod
Lifespan	100000cycle
Rated Current	10A/16A/20A
Type	Thermostat for Temperature Control Switch
Rotation Angle of Thermostat Shaf	0 to 325 Optional
Shaft Height	Customized
Insulation Resistance	0.243 ±0.06 Ω
Temperature Range	0-250 Degrees
Transport Package	Standard Export Packing
Specification	0-250 degree, AC250V/AC120V
Trademark	JAYE
Origin	China
HS Code	90321000
Production Capacity	100, 000 Per Week

Packaging & Delivery

Package Size 40.00cm * 34.00cm * 36.00cm Package Gross Weight 10.000kg

Product Description

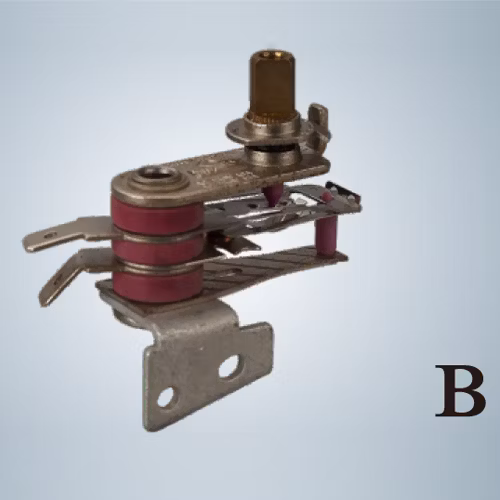

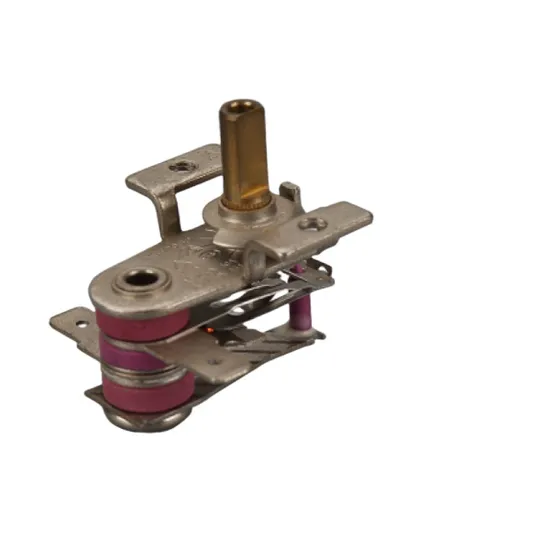

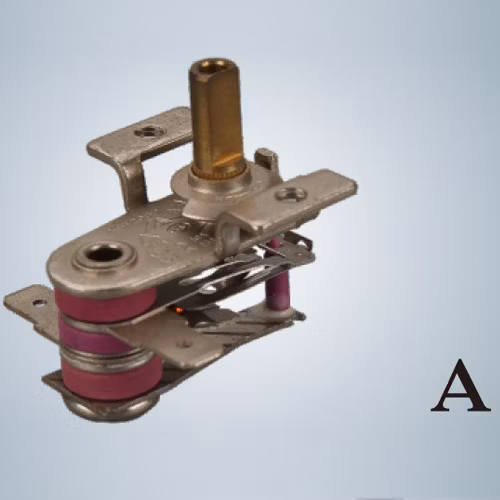

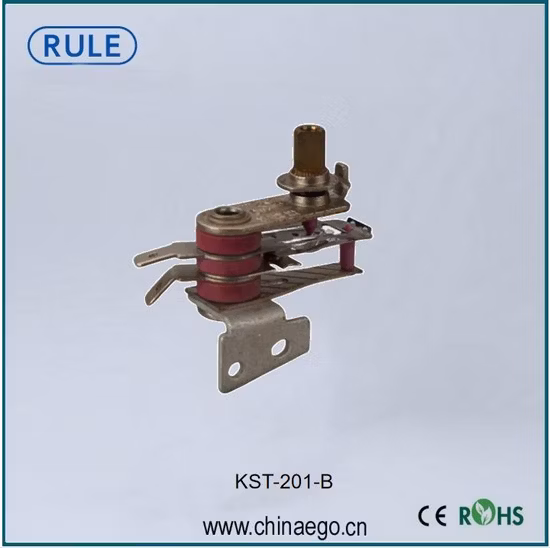

Adjustable Electric Iron KST Thermostat
KST thermostat switch is used in home appliance for temperature control from low temperature to high. Design of KST adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. KST turns on and off within prescribed temperature range.

Main applications of KST:
1. Oven, electrical irons, rice cookers, water boilers
2. Fan heater Barbeque grill and various household appliances.
Technical parameters:

Electrical Performance	10A/AC250V16A/AC 250V 20A/AC125V
Temperature Range	0 ºC-260°C
Ambient Temperature	T250°C
Wiring	A. Plug terminal : 250#187#(0.8mm thick and bend : 30°,45°,90°is available) B. Terminal Blocks :M4,M3
Product Lifespan	100,000cycles
Thermostat Axis Rotation Angle	150°,180°,210°,250°,270°,300°,310°
Electrical Strength	AC2000V/0.5mA/min
Insulation Resistance	>100MΩ
Contact Resistance	≤50MΩ
Grounding Method	Mounting plate or install oranges electrical enclosure parts connected by thermostat

Special Features:
- KST can replace ceramic fixed thermostat when using a screw instead of its axis.- KST can control temperature and shorten temperature range through detecting current.- KST can be crimped a block for installation and conducting heat.- The mounting brackets have several shapes.

Options:
- Dimension and angle of shaft are optional.- Tripping-off temperature and property curve are optional.- Dimension and direction of terminals are optional.

Production Line:

Certificate:

FAQ (1). Q: Can you give me a discount price?
A: It is depending on the quantity. The larger the quantity is, the more discount you can enjoy.(2). Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we need to charge a sample fee.(3). Q: Why does your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.Our price maybe not the lowest, but our cost performance is the highest.(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
