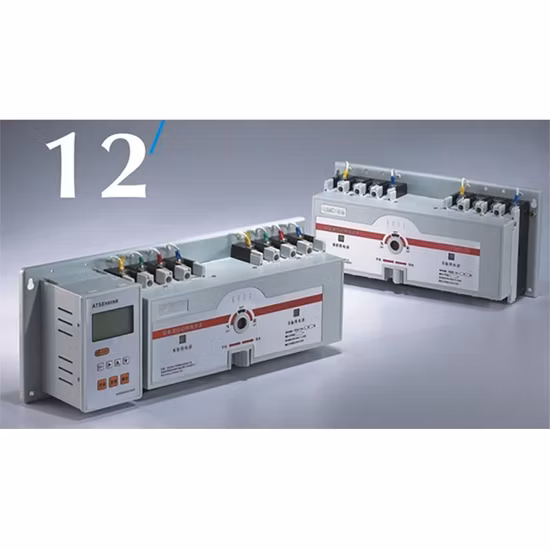

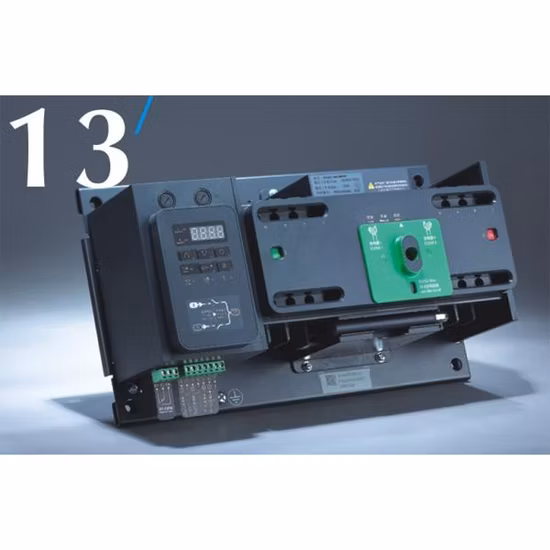

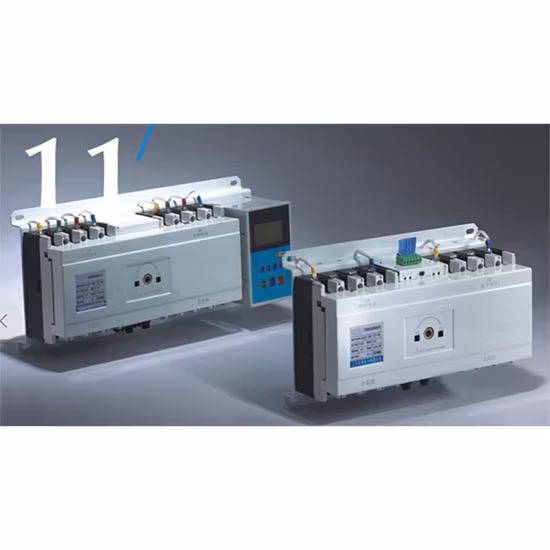

Remote Control Three Sections Automatic Transfer Switch for ATS Controller

Basic Info.

Model NO.	GGQ-1 400A
Output type	Dual
Mechanical Life	8000
Pole	Abcn
Rated Current	100-3200A
Electric Life	3000
Class	PC
Shell Protection Grade	IP55
Current	630A
Shell Material	Steel Plate
Application Range	Power Plant, Hospital
Respond Time	0.05s
Transport Package	Paper /Wooden Pallet
Specification	RoHS package
Trademark	JUNKE
Origin	Zhejiang Yueqing
HS Code	85385000
Production Capacity	15000PCS

Product Description

Remote Control Three Sections Automatic Transfer Switch for ATS controller What dual power automatic transfer switch?
Dual-power automatic transfer switch is microprocessor, which is used to start and switch between grid power and grid power or between grid power and generator power supply in power grid system. It can supply power continuously. Series of dual power supply, when the common use of sudden failure or power outage, through the dual power automatic transfer switch, automatically put into the standby power supply (under small load standby power supply can also be supplied by generators), so that the equipment can still operate normally. The most common are elevators, fire protection, monitoring, lighting and so on.
When the generator set is used as emergency lighting power supply, the start-up time and power conversion time of the generator should not exceed 15s. Double power automatic switching switch should choose "city power - generator conversion" special type.
Dual-power automatic transfer switch has the functions of short circuit and overload protection, over-voltage, under-voltage, phase-gap automatic conversion and intelligent alarm, automatic conversion parameters can be set freely outside, and intelligent protection of operating motor. When the fire control center gives a control signal to the intelligent controller, two circuit breakers enter the sub-unit. In the gate state, the computer network interface is reserved for the realization of remote control, remote adjustment, remote communication, remote measurement and other four remote functions.

Rated Current(Ith)			80A	100A	125A	160A	250A	400A	630A	800A	1000A	1250A	1600A
Rated insulation voltage(Ui)		750V						1000V
Rated concussion withstand voltage(Uimp)		8KV						12KV
Rated working voltage(Ue)		AC440V
Rated working current(Ie)	AC-31A	80		100	125	160	250	400	630	800	1000	1250	1600
	AC-35A	80		100	125	160	250	400	630	800	1000	1250	1600
	AC-33A	80		100	125	160	250	400	630	800	1000	1250	1600
Rated connection capacity		10le
Rated breaking capacity		8le
Rated limited short-circuit current(ls)		50kA						70kA				100kA	120kA
Rated short-time withstand current(ls)		7kA				9kA		13kA		26kA		50kA
Transfer I-II or II-I		0.45s						0.6s		1.2s
Control Power voltage		DC24V. 48V. 110V. AC220V
Electrical consumption
Rated frequency	Start	300W				325W		355W		400W	440W
	Normal	55W				62W		74W		90W	98W
Weight(kg) 4 pole			7.2	7.5	7.5	8.8	9.0	16.5	17	32	36	40	43
